Compact Brushless Motor

DLV02/12/16 series

For Machine Screws #8 or less (1.0 - 4.2 mm)
Features
  • Brushless motors are incorporated for maximum tool life
  • Ergonomic grip offers greater operator comfort and increased maneuverability
  • Clear plastic torque adjustment cover provided as standard accessory
  • Grounded bit system standard

Specifications

Electric Screwdriver
Model Starting
Method
Free Speed
rpm
Torque
Lb-in(Nm)
Screw Size(for reference) Weight lbs(g) Bit Input Voltage Power Consumption W
inch thread metric coarse thread

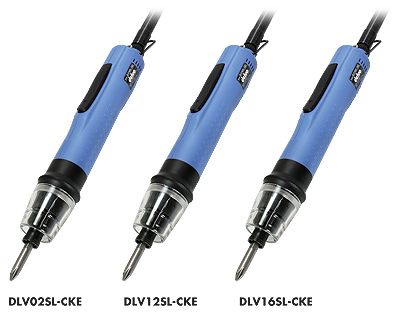

DLV02SL-CKE Lever Start 700 - 1,000 0.27 - 1.8
(0.03 - 0.2)
#2 or less 1.0 - 2.2 mm 1.03 (470) Hex 1/4” 20 - 30 V DC 48
DLV12SL-CKE 1.33 - 10.6
(0.15 - 1.2)
#4 or less 1.4 - 3.0 mm
DLV16SL-CKE 1.8 - 14.2
(0.2 - 1.6)
#2 - #8 2.2 - 4.2 mm

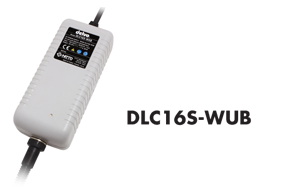

Controller


Universal input voltage from 100 V AC to 240 V AC to easy installation

  • Variable speed adjustment enables you to select optimum screw tightening speed
  • Grounded bit system standard

Model DLC16S-WUB
Input Voltage 100 - 240 V AC, 50/60 Hz
Function Grounding, Speed Control
Weight lbs(g) 0.84 (380)
Standard Accessories
Torque Diagrams (for reference)
For DLV02
  • Bit No.0 × 3.8 × 50: 1 pc.
  • Bit No.1 × 3.8 × 50: 1 pc.
  • Power Cord: 1 pc.
  • Suspension Bail
For DLV12 and
DLV16
  • Bit No.1 × 3.8 × 50: 1 pc.
  • Bit No.2 × 4.5 × 50
  • Power Cord: 1 pc.
  • Suspension Bail
