Low Voltage Brushless Motor for Controller with Screw Fastening Counter

DLV30/45-IKU series

For Machine Screws #3 - #13 (2.6 - 6.0 mm)
Features

Brushless motor powered electric screwdrivers with external, adjustable controller

  • Brushless motor and newly designed clutch provide a more consistent torque output over the life of the tool
  • Any of the three models can be operated by a standard controller, allowing a wide range of torque from 3.5 - 39.8 Lb-in and max speeds of 650, 1,200, and 2,000 rpm
  • Torque ring cover prevents unintentional changes in the preset torque amount (clear cover on DLV30 series)
  • Torque ring cover prevents unintentional changes in the preset torque amount (DLV45)
  • Detachable Pistol Grip comes as standard accessory (DLV45)
  • Grounded bit system standard

Specifications

Electric Screwdriver
Model Starting
Method
*1Adjustable
Speed Range

rpm
*1Free Speed
at Soft Start

rpm
*1Adjustable
Soft Start Time

sec
Torque
Lb-in(Nm)
Screw Size(for reference) Weight lbs(g) Bit Input Voltage Power Consumption W
Low Torque Spring
(Standard Accessory)
High Torque Spring
(installed)
inch thread metric coarse thread
DLV30LL-IKU Lever Start 390 - 650 260 0 - 2 3.5 - 14.2
(0.4 - 1.6)
10.6 - 26.6
(1.2 - 3.0)
#3 - #11 2.6 - 5.0 mm 1.58 (720) Hex 1/4” 40 V DC 77
DLV30SL-IKU 720 - 1,200 480
DLV30HL-IKU 1,200 - 2,000 800
DLV30LP-IKU Push to Start 390 - 650 260
DLV30SP-IKU 720 - 1,200 480
DLV30HP-IKU 1,200 - 2,000 800
DLV45LL-IKU Lever Start 390 - 650 260 17.7 - 39.8
(2.0 - 4.5)
#9 - #13 4.5 - 6.0 mm 1.91 (870)
DLV45SL-IKU 720 - 1,200 480
DLV45LP-IKU Push to Start 390 - 650 260
DLV45SP-IKU 720 - 1,200 480
*1 : Values are obtainable in combination with control unit DLR70S-WUB or DLC70S-WUB.

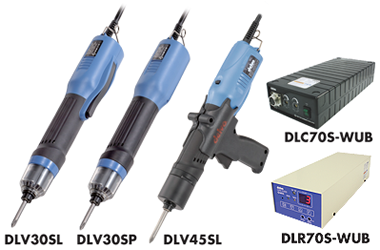

Controller
DLR70S-WUB Screw Fastening Counter
DLC70S-WUB Controller
Standard Accessories
Optional Accessories
For DLV30
  • Bit No.2 × 7 × 75: 1 pc.
  • Suspension Bail: 1 pc.
  • Low Torque Spring: 1 pc.
For DLV45
  • Bit No.2 × 7 × 75: 1 pc.
  • Suspension Bail: 1 pc.

Easy-to-attach grip for horizontal operation.
Pistol Grip DLW2300
(TD00335)
Torque Reaction Arm
(TD06180)

Vacuum Pickup DLP7400 for high torque
(TD07286-0)
Sleeve
DLS4220
(TV06220-0)
DLS4221(TV06221-0)

For enhanced productivity and prevention of operator’s repetitive motion injury, a torque reaction arm should be used all together.

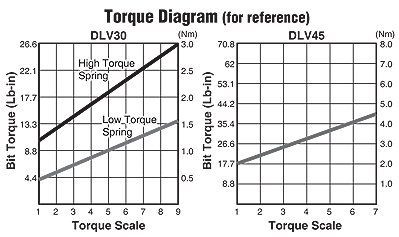

Torque Diagrams (for reference)
