Transformerless Brushless Motor

DLV30/45-LKU series

For Machine Screws #3 - #13 (2.6 - 6.0 mm)
Features

Eco-friendly brushless motor powered screwdrivers in a compact transformer-less profile
High-Torque brushless motor powered electric screwdrivers

  • Brushless motor and newly designed clutch provide a more consistent torque output over the life of the tool
  • More accurate torque control and considerably quieter operation when compared to pneumatic screwdrivers
  • Lever-Start and Push-to-Start models are available. The Lever-Start models are suited for hard to start screws or screws set at angles.
    Push-to-Start models are suited for continuous tightening applications or pre-threaded screws.

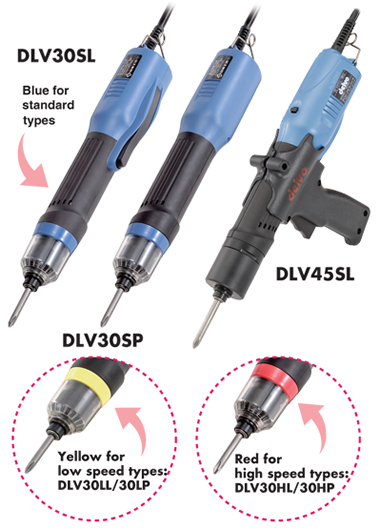

  • Series lineup consists of high speed (Red, 2,000 rpm), standard speed (Blue, 1,200 rpm) and low speed (Yellow, 650 rpm) with respective torque ranges of 3.5 - 26.6 Lb-in (DLV30)
  • The clear plastic cover is mounted over the torque adjustment ring to prevent unintentional changes of the preset torque amount (DLV30)
  • Torque ring cover prevents unintentional changes in the preset torque amount (DLV45)
  • Detachable Pistol Grip comes as standard accessory (DLV45)
  • Grounded bit system standard

Specifications

Electric Screwdriver
Model Starting
Method
Free Speed
rpm
Torque
Lb-in(Nm)
Screw Size(for reference) Weight lbs(g) Bit Input Voltage Power Consumption W
Low Torque Spring
(Standard Accessory)
High Torque Spring
(installed)
inch thread metric coarse thread
DLV30LL-LKU Lever Start 650 3.5 - 14.2
(0.4 - 1.6)
10.6 - 26.6
(1.2 - 3.0)
#3 - #11 2.6 - 5.0 mm 1.54 (700) Hex 1/4” 115 V AC, 50/60 Hz 45
DLV30SL-LKU 1,200
DLV30HL-LKU 2,000
DLV30LP-LKU Push to Start 650
DLV30SP-LKU 1,200
DLV30HP-LKU 2,000
DLV45LL-LKU Lever Start 650 17.7 - 39.8
(2.0 - 4.5)
#9 - #13 4.5 - 6.0 mm 1.91 (870)
with Pistol Grip
DLV45SL-LKU 1,200
DLV45LP-LKU Push to Start 650
DLV45SP-LKU 1,200
Standard Accessories
Optional Accessories
For DLV30
  • Bit No.2 × 7 × 75: 1 pc.
  • Suspension Bail: 1 pc.
  • Low Torque Spring: 1 pc.
For DLV45
  • Bit No.2 × 7 × 75: 1 pc.
  • Suspension Bail: 1 pc.

Easy-to-attach grip for horizontal operation.
Pistol Grip DLW2300
(TD00335)
Torque Reaction Arm
(TD06180)

Vacuum Pickup DLP7400 for high torque
(TD07286-0)
Sleeve
DLS4220
(TV06220-0)
DLS4221(TV06221-0)

For enhanced productivity and prevention of operator’s repetitive motion injury, a torque reaction arm should be used all together.

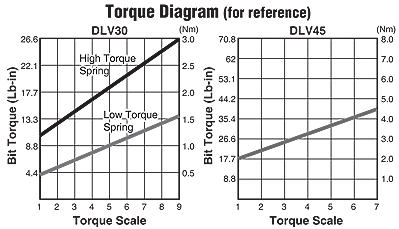

Torque Diagrams (for reference)
