Sleeves and Vacuum Pickups

For DLV5800 Series

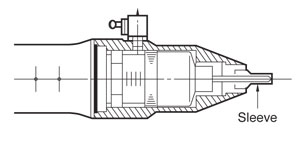

Vacuum Pickup
DLP5300 (for DLV5800 Electric Screwdrivers)


Standard Set
Vacuum Pickup
(Part No.)
DLP5300
(TD04342)
Accessories DLS2120 × 1 pc.
DLS2124 × 1 pc.

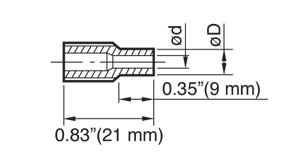

Sleeve DLS2000 series
(Plastic)

Sleeve
Sleeve
Bit
Model
Part No.
ød
øD
in
mm
in
mm
DLS2120 TD00348 0.08 2 0.14 3.5 No.0 × 1.8 × 44 Phillips Head
(No. × d × L)
DLS2121 TD00349 0.09 2.2
DLS2122 TD00350 0.1 2.5
DLS2123 TD00351 0.11 2.7
DLS2124 TD00352 0.12 3.1 0.18 4.5 No.0 × 2.5 × 44
DLS2125 TD00353 0.13 3.3
DLS2126 TD00354 0.14 3.5
DLS2127 TD00355 0.15 3.7
DLS2128 TD00356 0.16 4 0.22 5.5 No.1 × 3 × 44
DLS2129 TD00357 0.17 4.2
DLS2130 TD00358 0.18 4.5 No.1 × 4 × 44
DLS2131 TD00359 0.19 4.7
DLS2132 TD00360 0.2 5.1 0.26 6.5 No.2 × 4 × 44
DLS2133 TD00361 0.21 5.3
DLS2134 TD00362 0.22 5.6
DLS2135 TD00363 0.24 6.1 0.28 7

For DLV7104/8104/8204-LKU series and DLV30/45 series

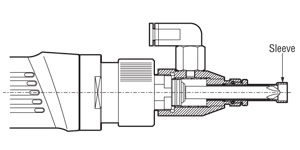

Vacuum Pickup
DLP7400 for high torque


Standard Set
Vacuum Pickup
(Part No.)
DLP7400 for high torque
(TD07286-0)
Accessories DLS4220
DLS4221

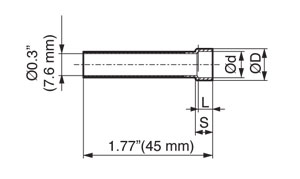

Sleeve DLS4000 series
(Metal)

Sleeve

Bit

Phillips Head
(No. × d × L)

Model
Part No.
ød
øD
L
S
in
mm
in
mm
in
mm
in
mm
DLS4220
TV06220-0
0.36
9.1
0.43
11
0.2
5
0.24
6

NK 35

No.1 × 7 × 75
No.2 × 7 × 75
No.3 × 7 × 75

DLS4221
TV06621-0
0.42
10.6
0.49
12.5
0.22
5.5
0.28
7
