MYTON ANGLE GRINDERS
RIGHT ANGLE GRINDERS

Heavy duty grinders for tough applications

Features

  • Ideal for industrial and production grinding applications
  • Variable Speed Control
  • Side exhaust with noise reduction system
  • Locking throttle lever helps prevent accidental start-up
  • Great power/weight ratio
  • Insulated handle for operator convenience and comfort
  • Push button spindle lock for changing wheels (MLG-40, MLG70)

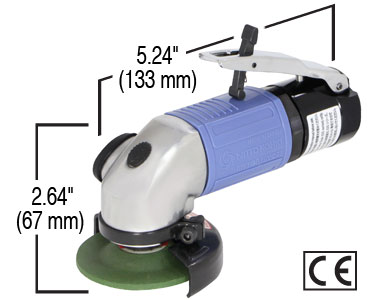

MLG-25

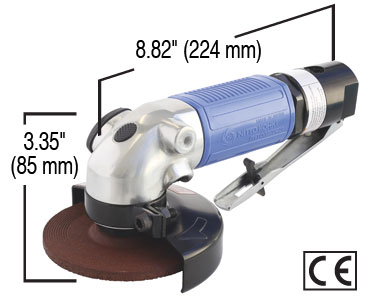

MLG-40
Depressed center wheel 2-1/4" Depressed center
wheel 4”

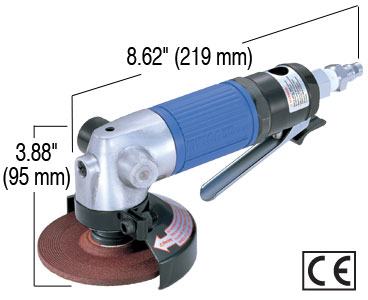

MAGW-40

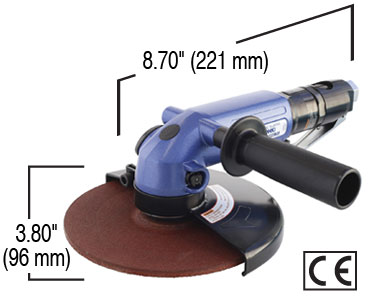

MLG-70
Depressed center
wheel 4”
Depressed center
wheel 7”

Model
MLG-25
MLG-40
MAGW-40
MLG-70
Air Pressure
85 PSI
85 PSI
85 PSI
85 PSI
Air Consumption (No Load)
14.8 CFM
15.9 CFM
24.0 CFM
26.5 CFM
Air Consumption (Load)*

32.1 CFM
29.0 CFM
38.8 CFM
Free Speed
19,000 RPM
13,000 RPM
13,000 RPM
7,600 RPM
Grinding Wheel Diameter
2-1/4" max.
4" max.
4" max.
7" max.
Spindle OD Size
3/8"
5/8"
5/8"
7/8"
Horsepower
0.29 HP
0.97 HP
0.78 HP
1.50 HP
Hose Size
1/4" ID
3/8" ID
3/8" ID
3/8" ID
Weight
1.3 lbs.
3.3 lbs.
3.4 lbs.
5.4 lbs.
Schematic
Accessories Included
  • Threaded Adapter PT1/4” x NPT1/4”
  • 5 mm Allen Wrench
  • 19 mm Spanner
  • 80 grit Grinding Disc
  • Threaded Adapter PT3/8” x NPT3/8”
  • 5 mm Allen Wrench
  • 6 mm Allen Wrench
  • Threaded Adapter PT3/8” x NPT3/8”
  • 6 mm Allen Wrench
  • 17 mm Spanner
  • Threaded Adapter PT3/8” x NPT3/8”
  • 6 mm Allen Wrench
  • 8 mm Allen Wrench
  • Side Handle Assembly
  • Wheel Guard Assembly

*Governed models
