Machine Tools

ELECTRIC PUNCH

E55-0619
Self-contained hydraulic punch shows its power in making round or elongated holes in flat bar, angle bar or channel iron.
Max. Punching Diameter: 13/16"
Max. Punching Diameter: 13/16"
Max. Punching Diameter: 13/16"

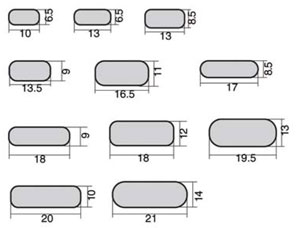

Custom shape and size punches and dies available upon request


E55-0619
Schematic
Power Source (Single Phase) 110-120V AC 50/60 Hz
Rated Power Consumption 670 W
Rated Current 7.0 A
Max. Punching Diameter 13/16"
Max. Punching Thickness 1/4"
Max. Throat Depth 2-3/16"
Punching Time 2 sec..
Weight 31 lbs
Accessories Included
  • 3 mm / 4 mm / 5 mm Allen Wrench
  • Stand Assembly
  • EL Punch 18 / EL Die 18B / EL Die 18A Mounted on Machine
  • Spanner 10 x 12

Selection of Dies

Application Type of Die Plate Thickness
Mild Steel Stainless Steel
For thin sheets A 1/16" – 1/8" Max. 1/8"
For thick sheets B 5/32" – 1/4" Max. 5/32"
For channel iron C 9/32" – 5/16" N.A.

Optional Accessories

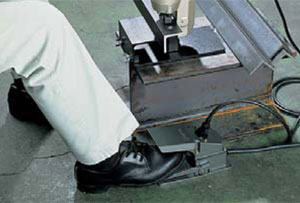

Foot Switch Assembly

TB00799-0
