Air/Power Tools

MYTON ANGLE GRINDERS

RIGHT ANGLE GRINDERS
Heavy duty grinders for tough applications

Features

  • Ideal for industrial and production grinding applications
  • Variable Speed Control
  • Side exhaust with noise reduction system
  • Locking throttle lever helps prevent accidental start-up
  • Great power/weight ratio
  • Insulated handle for operator convenience and comfort
  • Push button spindle lock for changing wheels (MYG-40, MYG-50, MYG-70)

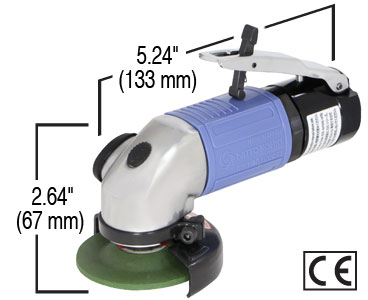

MYG-25

Depressed center wheel 2-1/4"

Schematic

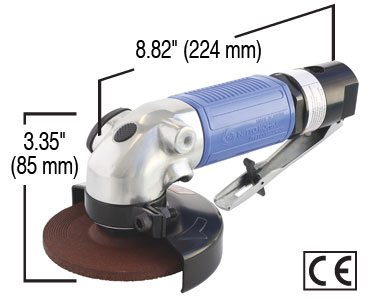

MYG-40

Depressed center wheel 4”

Schematic

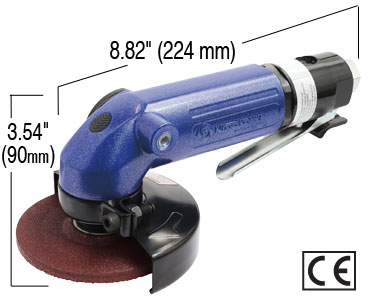

MG-40

Depressed center wheel 4”

Schematic

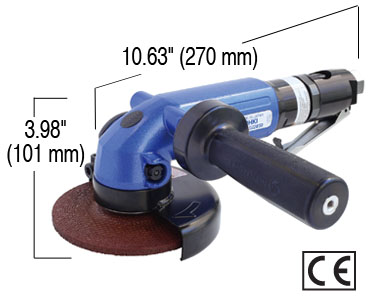

MYG-50

Depressed center wheel 5”

Schematic

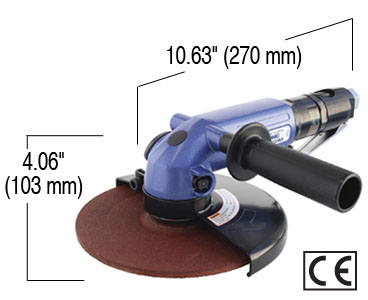

MYG-70

Depressed center wheel 7”

Schematic
Model MYG-25 MYG-40 MG-40 MYG-50 MYG-70
Air Pressure 85 PSI 85 PSI 85 PSI 85 PSI 85 PSI
Air Consumption (No Load) 14.8 CFM 17.7 CFM 17.7 CFM 24.7 CFM 24.7 CFM
Air Consumption (Load)* - 24.4 CFM - 38.8 CFM 33.5 CFM
Free Speed 19,000 RPM 13,000 RPM 13,000 RPM 11,000 RPM 7,600 RPM
Grinding Wheel Diameter 2-1/4" max. 4" max. 4" max. 5" max. 7" max.
Spindle OD Size 3/8" 5/8" 5/8" 7/8" 7/8"
Horsepower 0.29 HP 0.82 HP 0.82 HP 1.34 HP 1.34 HP
Hose Size 1/4" ID 3/8" ID 3/8" ID 3/8" ID 3/8" ID
Weight 1.3 lbs. 3.3 lbs. 3.5 lbs. 5.5 lbs. incl. side-handle 5.5 lbs. incl. side-handle
Accessories Included
  • Threaded Adapter PT1/4" x NPT1/4
  • 5 mm Allen Wrench
  • 19 mm Spanner
  • 80 grit Grinding Disc
  • Threaded Adapter PT3/8” x NPT3/8"
  • 5 mm Allen Wrench
  • 6 mm Allen Wrench
  • Threaded Adapter PT3/8” x NPT3/8"
  • 5 mm Allen Wrench
  • 6 mm Allen Wrench
  • Threaded Adapter PT3/8” x NPT3/8"
  • 4 mm Allen Wrench
  • 6 mm Allen Wrench
  • Pin Face Wrench
  • Side Handle Assembly
  • Wheel Guard Assembly
  • Threaded Adapter PT3/8" x NPT3/8"
  • 6 mm Allen Wrench
  • 8 mm Allen Wrench
  • Side Handle Assembly
  • Wheel Guard Assembly
Air/Power Tools Accessories
*Governed models
