Air/Power Tools

AIR DRILL

AIR DRILLS
The power and performance you need to drill deeper and faster

Features

  • Ultra high power to weight ratio
  • Ergonomically designed to reduce operator fatigue

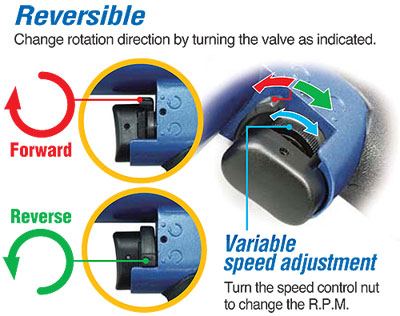

  • Variable speed control
  • Reversible
  • Designed for industrial and production applications
  • One year limited warranty

ADR-65

Schematic

ADR-100

Schematic
Air Pressure 85 PSI 85 PSI
Air Consumption (no load) 19.5 CFM 23.7 CFM
Free Speed 2,900 RPM 2,000 RPM
Chuck Size 1/4” (6.5 mm) max. 3/8” (10 mm) max.
Hose Size 3/8” 3/8”
Weight (without hose) 1.76 lbs. 2.42 lbs.
Accessories Included
  • 1/4” (65 mm) Drill Chuck
  • Chuck Key
  • Threaded Adapter PT3/8” x NPT3/8”
  • 3/8” (10 mm) Drill Chuck
  • Chuck Key
  • Threaded Adapter PT3/8” x NPT3/8”
