Machine Tools

ATRA ACE Manual Feed

MAGNETIC DRILLS - MANUAL

Nitto-Kohki’s Atra Ace boosts productivity in the hole drilling industry.

Video Gallery

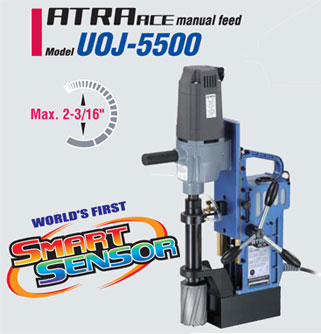

Model UOJ-5500
Schematic
Motor Schematic
Power Source (Single Phase) 110-120 V AC 50/60Hz
Electric Drill Rated Power Consumption (W) 1,150
Rated Current (A) 10.8
No Load Speed (rpm) 350 / 650
Magnet Power Consumption (W) 50
Capacity Hole Diameter 2-3/16" max.
Depth of Cut 3" max.
Twist Drill Capacity N/A
Magnet Holding Power (lbs.) 2,249
Magnet Dimensions (inch) 3-3/8" x 6-11/16"
Weight (lbs.) 40
Accessories Included
  • UEA0850-0 pilot pin 5/16" x 2" DOC
  • 3 mm allen wrench
  • 5 mm allen wrench
  • 8 mm x 10 mm combination spanner
  • Motor side handle
  • Feed handles (3 each)
  • Chip guard assembly
  • Safety chain
  • Molded plastic carrying case
  • Sample Cutting Fluid

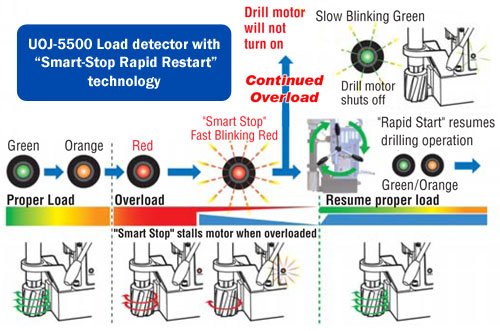

As the drilling load increases, the load indicator will change in color from green to orange to red. In addition, if excessive feeding force is applied, the load indicator will rapidly blink red and the rotation of the drill motor will slow down and temporarily stop. If the load is released while the load indicator is blinking red, the drill motor will resume its rotation.

UOJ-3500

1-3/8" x 2" hole capacity

UOJ-5500

2-3/16" x 3" hole capacity

UO-3500

1-3/8" x 2" hole capacity
  • Especially designed for H.S.S. cutters
  • Side-lock version (UO-3500-02) available

Uses Hi-Broach High-speed Steel Annular Cutters

M-100D

3/8" hole capacity
  • Smallest and lightest Magnetic Base Drill with 3/8” chuck
  • Very easy to handle
  • Superior workhorse for drilling small holes with twist drill bits

A-100

4" x 3" hole capacity
  • Super-duty Magnetic Base Drill to handle up to 4” x 3” capacity
  • Equipped with overload indicator with motor shut-off feature
Model UOJ-3500 UOJ-5500 UO-3500 M-100D A-100
Schematic Schematic Schematic Schematic Schematic
Motor Schematic Motor Schematic Motor Schematic Motor Schematic Motor Schematic
Power Source (Single Phase) 110-120 V AC 50/60Hz 110-120 V AC 50/60Hz 110-120 V AC 50/60Hz 110-120 V AC 50/60Hz 220-240 V AC 50/60Hz
Electric Drill Rated Power Consumption (W) 680 1,150 680 390 1,600
Rated Current (A) 6 10.8 6 3.7 7.4
No Load Speed (rpm) 700 350 / 650 400 1700 330
Magnet Power Consumption (W) 32 50 32 35 80
Capacity Hole Diameter 1-3/8" max. 2-3/16" max. 1-3/8" max. 3/8" max. 4" max.
Depth of Cut 2" max. 3" max. 2" max. 4" max. 3" max.
Twist Drill Capacity 1/2" N/A 1/2" 3/8" N/A
Magnet Holding Power (lbs.) 2,023 2,249 2,023 772 3,968
Magnet Dimensions (inch) 3-5/32" x 6-3/8" 3-3/8" x 6-11/16" 3-5/32" x 6-3/8" 4-1/8" dia. 5-1/8" x 10-1/16"
Weight (lbs.) 31 40 31 18 110
Accessories Included
  • UEA0835-0 pilot pin 5/16" x 1-3/8" DOC
  • 3 mm allen wrench
  • 5 mm allen wrench
  • 8 mm x 10 mm combination spanner
  • Motor side handle
  • Feed handles (3 each)
  • Chip guard assembly
  • Safety chain
  • Molded plastic carrying case
  • UEA0850-0 pilot pin 5/16" x 2" DOC
  • 3 mm allen wrench
  • 5 mm allen wrench
  • 8 mm x 10 mm combination spanner
  • Motor side handle
  • Feed handles (3 each)
  • Chip guard assembly
  • Safety chain
  • Molded plastic carrying case
  • Sample Cutting Fluid
  • UEA0825-0 pilot pin 5/16" x 1" DOC
  • 3 mm allen wrench
  • 5 mm allen wrench
  • 8 mm x 10 mm combination spanner
  • Motor side handle
  • Feed handles (3 each)
  • Chip guard assemblySafety chain
  • Molded plastic carrying case
  • 2.5 mm allen wrench
  • 7 mm x 8 mm combination spanner
  • Chuck key ((TP08006-0)
  • TA9A207-0 pilot pin 3" DOC
  • 2 mm allen wrench
  • 2.5 mm allen wrench
  • 3 mm allen wrench
  • 4 mm allen wrench
  • 5 mm allen wrench
  • 6 mm allen wrench
  • 7 mm allen wrench
  • 8 mm x 10 mm combination spanner
  • Safety chain
  • Tool box
