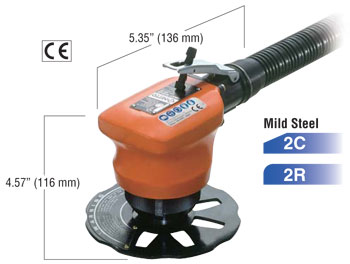

CIRCUIT BEVELER - CB-02

BEVELERS

Pneumatic Radial Chamfering Tool

Hand beveler, ideal for edge beveling circular, elliptical and straight line profiles

Features

Lightweight and compact for most beveling and chamfering applications
Uniquely designed to bevel circular, elliptical and straight line profiles Bevels exterior and/or interior edges
Bevel widths up to 5/64” at 45°
Depth gauge provided to accurately set bevel widths
Optional attachment #TB02437 available for chamfering and/or beveling thin materials
Uses indexable carbide inserts
One year limited warranty

For Super Hand SH-100A, ASH-800 & ASH-900
PN	Description
TV7A010	Straight Tip (2 pcs./set)
TV7A011	1/16” (2 mm) Radius Tip (2 pcs./set)

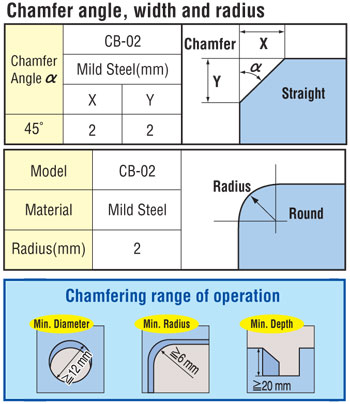

	CB-02 Schematic
Air Pressure	85 PSI
Air Consumption	41.1 CFM
Chamfering Capacity (Mild Steel)	Up to 5/64” (2 mm) Chamfer or 1/16” (2 mm) Radius
Weight	4.0 lbs. (1.8 kg)
Accessories Included	Threaded adapter PT1/4” x NPT1/4” Straight Cutting Tip Hook Spanner Cutting Depth Adjustment Gauge Torx 9 (T-9) Spanner Wrench Protective Cap
	Air/Power Tools Accessories

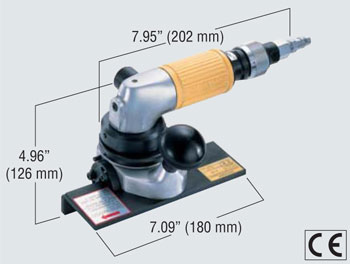

MINI BEVELER - AMB-0307

BEVELERS

Handy Pneumatic Chamfering Tool

Features

Lightweight design for portable edge beveling applications
Ideal for beveling plate, pipe, tube and other profiles
Designed to bevel stainless and carbon steels
Adjustable to bevel angles from 15° - 45°
300 mm (12”) minimum radius bend
Bevel widths up to 9/32” at 45°
Uses indexable carbide inserts
One year limited warranty

Available Cutting Tips for EMB-0307B and AMB-0307
PN	Description
TV7A019	Straight Tip (2 pcs./set)
TV7A020	1/16” (2 mm) Radius Tip (2 pcs./set)
TV7A021	1/8” (3 mm ) Radius Tip (2 pcs./set)
TV7A022	5/32” (4 mm) Radius Tip (2 pcs./set)

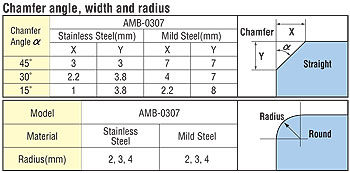

	AMB-0307 Schematic
Air Pressure	85 PSI
Air Consumption	31.8 CFM
Chamfering Capacity (Mild Steel)	Up to 5/16” (7 mm) Chamfer or 1/16” (2 mm), 1/8” (3 mm), 5/32” (4 mm) Radius
Chamfering Capacity (Stainless Steel)	Up to 1/8” (3 mm) Chamfer or 1/16” (2 mm), 1/8” (3 mm), 5/32” (4 mm) Radius
Chamfering Angle	15 - 45 Degrees
Weight	6.4 lbs. (2.9 kg)
Accessories Included	Threaded Adapter PT3/8” x NPT 3/8” 3 mm Allen Wrench 4 mm Allen Wrench Straight Cutting Tip (2) Hex. Nut M8 (2) Hex. Socket Set Screw 8 mm x 25 mm Torx 15 (T-15) Spanner Wrench
	Air/Power Tools Accessories

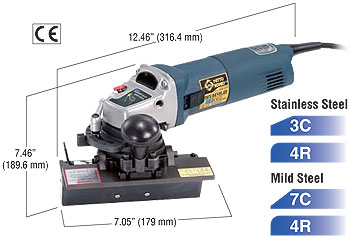

MINI BEVELER - EMB-0307B

BEVELERS

Handy Electric Chamfering Tool

Features

Operates on single phase 230V current
Ideal for edge beveling pipe, tube, and plate
Designed to bevel stainless and carbon steels
Powerful 1-1/2 horsepower double insulated motor
Adjustable to bevel angles 15° - 45°
Bevel widths up to 5/16” on mild steel
Uses indexable carbide inserts
Swarf and chip collection box included
One year limited warranty

Available Cutting Tips for EMB-0307B and AMB-0307
PN	Description
TV7A019	Straight Tip (2 pcs./set)
TV7A020	1/16” (2 mm) Radius Tip (2 pcs./set)
TV7A021	1/8” (3 mm ) Radius Tip (2 pcs./set)
TV7A022	5/32” (4 mm) Radius Tip (2 pcs./set)

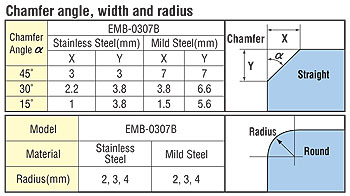

	EMB-0307B Schematic
Power Supply	220 V - 240 V A/C, 50/60 Hz
Rated Power Consumption	1010 W
Rated Current	4.6 A
Rated Duty Cycle	Continuous
Chamfering Capacity (Mild Steel)	Up to 5/16” (7 mm) Chamfer or 1/16” (2mm), 1/8” (3 mm), 5/32” (4 mm) Radius
Chamfering Capacity (Stainless Steel)	Up to 1/8” (3 mm) Chamfer or 1/16” (2 mm), 1/8” (3 mm), 5/32” (4 mm) Radius
Chamfering Angle	15 - 45 Degrees
Power Cord Length	13.1 Feet (4 Meters)
Weight	8.6 lbs. (3.9 kg)
Accessories Included	4 mm Allen Wrench Straight Cutting Tip (2) Hex. Nut M8 (2) Hex. Socket Set Screws 8 mm x 25 mm (3) Pan Head Screws 5 mm x 10 mm Torx 15 (T-15) Spanner Wrench Chip Collector Box Assembly Spare Carbon Brush Assembly (1 Set)
