Ideal for sanding and grinding in narrow spaces, recessed areas and on curved surfaces

Ideal for deburring, charmfering, bead grinding, and polishing applications

BELT SANDERS
Ideal for sanding and grinding in narrow spaces, recessed areas and on curved surfaces

Ideal for sanding and grinding in narrow spaces, recessed areas and on curved surfaces
All-around versatility for grinding, sanding and polishing applications
Grinding arm easily adjusts to operate in any position 0-360° (except BB-10B)
Unique rotor and vane assembly delivers maximum power and performance
Automatic belt tensioning system
Adjustable belt tracking
Rugged cast aluminum construction ensures trouble-free performance and operation

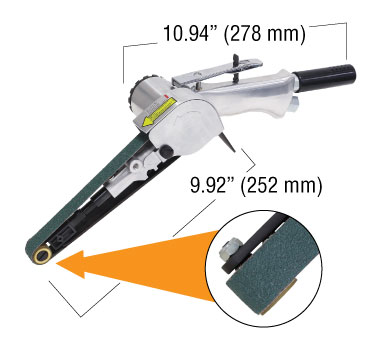

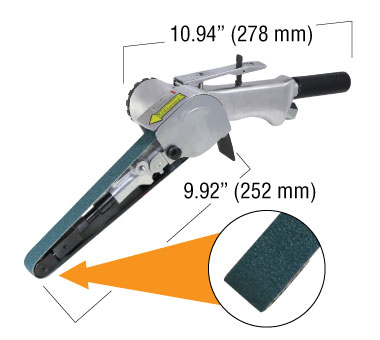

		The B-20CL sanding arm tip	The B-20CL-A sanding arm tip – cradled idle pulley for confined spaces
	B-10CL	B-20CL	B-20CL-A	B-30CL
	Schematic	Schematic	Schematic	Schematic
Air Pressure	85 PSI	85 PSI	85 PSI	85 PSI
Air Consumption	14.2 CFM	18.4 CFM	18.4 CFM	24.0 CFM
Rated Speed (No Load)	17,000 RPM	18,000 RPM	18,000 RPM	15,000 RPM
Belt Speed (No Load)	3,674 FPM	9,086 FPM	9,086 FPM	7,578 FPM
Belt Size	3/8” x 13” (10 mm x 330 mm)	3/4” x 20-1/2” (20 mm x 520 mm)	3/4” x 20-1/2” (20 mm x 520 mm)	1-3/16” x 21-1/4” (30 mm x 540 mm)
Hose Size	1/4”	1/4”	1/4”	1/4”
Weight (without hose)	2.0 lbs.	3.5 lbs.	3.3 lbs.	5.3 lbs.
Accessories Included	Assortment of Sample Belts, 1 Each of #60, #80, #100 and #120 grit Threaded Adapter PT1/4” x NPT1/4” 1.5 mm Allen Wrench 4 mm Allen Wrench Silencer	Assortment of Sample Belts, 1 Each of #60, #80, #100 and #120 grit Threaded Adapter PT1/4” x NPT1/4” 2.5 mm Allen Wrench 4 mm Allen Wrench Silencer Convex Shoe	Assortment of Sample Belts, 1 Each of #60, #80, #100 and #120 grit Threaded Adapter PT1/4” x NPT1/4” 2.5 mm Allen Wrench 4 mm Allen Wrench Silencer Finger Pad Assembly Convex Shoe	Assortment of Sample Belts, 1 Each of #60, #80, #100 and #120 grit Threaded Adapter PT1/4” x NPT1/4” 5 mm Allen Wrench Silencer Sub Handle Assembly

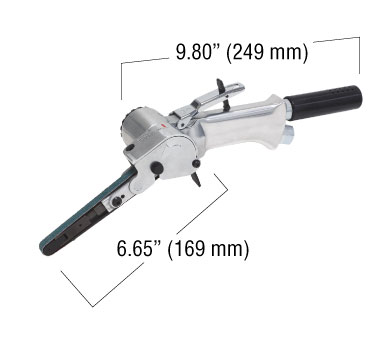

B-10CL
PN	Description
TB09997	Offset Bracket 10 Ass'y
TB09996	Offset Bracket 6 Ass'y (for 6 mm width belt)
TP14770	Shoe 6

B-20CL-A
PN	Description
TB10193	Offset Bracket 20 Ass'y

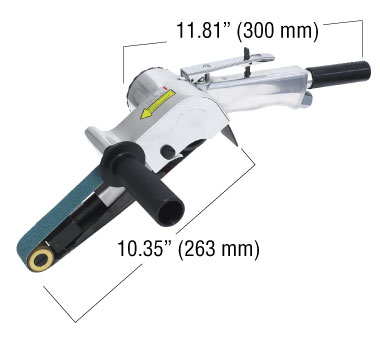

B-30CL
PN	Description
TB08150	Offset Bracket 30 Ass'y

Air/Power Tools Accessories

BELT SANDERS

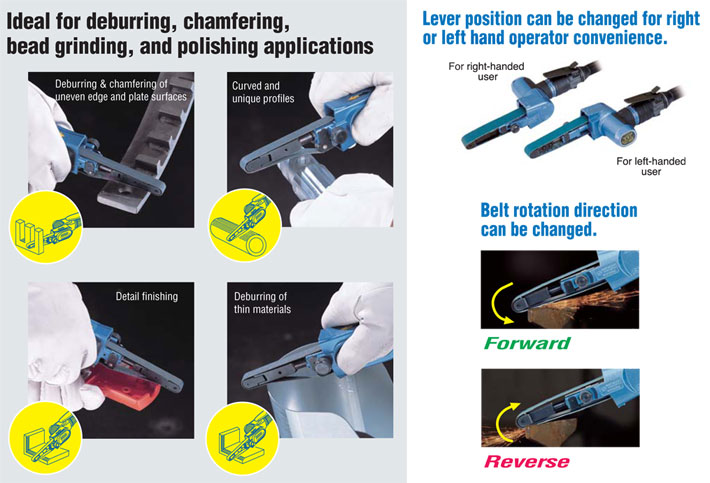

Ideal for deburring, charmfering, bead grinding, and polishing applications


	BB-10B
	Schematic
Air Pressure	85 PSI
Air Consumption	8.8 CFM
Motor Free Speed	16,000 RPM
Belt Speed	3,800 FPM
Belt Size	3/8” x 13” (10 mm x 330 mm)
Hose Size	1/4”
Weight (w/o hose)	1.3 lbs.
Accessories Included	Assortment of Sample Belts, 1 Each of #100, #120, #180, and #240 grit 1.5 mm Allen Wrench
