Air/Power Tools

FREE SANDERS

Super lightweight, low vibration design

LINE SANDER

Ideal for inline and grain sanding applications

PALM ORBITAL SANDERS

Ergonomic lightweight design

ORBITAL SANDERS

Heavy duty and powerful with adjustable speed regulator


FREE SANDER

SANDERS
Super lightweight, low-vibration design

Features

  • Ideal for sanding and surface finishing wood, metal, plastic and other materials
  • Lightweight design with minimal vibration
  • High output and low air consumption motors produce high speed orbits for swirl-free finishes
  • Oil free design
  • Suitable for industrial and production applications
  • One year limited warranty

FS-50A



Powerful turbine motor

Produces ultra-high speed orbits for super-fine finishing of all materials


FS-100C

Schematic

FS-50A

Schematic
Air Pressure 85 PSI 85 PSI
Air Consumption 7.1 CFM 4.9 CFM
Free Speed 20,000 RPM 15,000 RPM
Orbit Diameter 1/16” 3/64”
Pad Size 4” x 4-3/8” 3” x 3-3/16”
Paper Size 4-1/2” x 5-1/2” (1/4 Sheet) 2-3/4” x 4-1/2” (1/8 Sheet)
Weight 1.1 lbs. 1.1 lbs.
Accessories Included
  • Threaded Adapter PT1/4” x NPT1/4”
  • Hose Sub Assembly
  • Sample Sanding Papers
  • Threaded Adapter PT1/4” x NPT1/4”
  • Hose Sub Assembly
  • Sample Sanding Papers
Air/Power Tools Accessories

LINE SANDER

SANDERS
Ideal for inline and grain sanding applications

Features

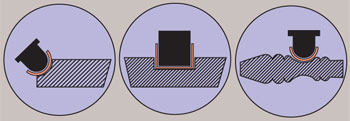

  • Ideal for most inline and profile sanding applications
  • Compact and lightweight 1.6 lb. design
  • Low vibration and minimal noise output
  • Suitable for sanding steel, aluminum, wood, plastic and other materials
  • Available with dust collection assembly
  • One year limited warranty

LS-10





Powerful turbine motor

Produces ultra-high speed orbits for super-fine finishing of all materials



Double Piston Alignment

Special double-action minimizes both noise and vibration.

LS-10

Schematic
Air Pressure 85 PSI
Air Consumption 3.9 CFM
Stroke Speed 4,000 SPM
Stroke Length 5/32”
Pad Size 2-5/32” x 4-1/16”
Paper Size 2-1/4” x 5-1/2” (1/8 Sheet)
Weight 1.6 lbs.
Accessories Included
  • Threaded Adapter PT1/4” x NPT1/4”
  • Hose Barb
  • Hose Sub Assembly
  • Block Pad Assembly
  • Sample Sanding Papers
Air/Power Tools Accessories

ORBITAL SANDER

SANDERS
Heavy-duty and powerful with adjustable speed regulator

Features

  • Powerful 3/4 horsepower dual action for tough applications
  • Also available with 5” pad (OSV-50A)
  • Standard with dust extraction system
  • Rugged construction for years of reliable performance
  • Available with dust collection assembly
  • One year limited warranty

OSV-60A



Random orbital action creates a professional finish

By offsetting the sanding pad shaft, fast aggressive sanding is achieved while dramatically reducing swirl patterns. Speed adjustments allow for the best speed for the best job.


OSV-60A

Schematic
Air Pressure 85 PSI
Air Consumption (No load) 24.1 CFM
Free Speed 8,500 RPM
Orbit Diameter 3/8”
Paper Size 6” Diameter
Pad Type PSA
Horsepower .75 HP
Weight 4.4 lbs.
Accessories Included
  • Threaded Adapter PT1/4” x NPT1/4”
  • Dust Collection Assembly with Dust Bag
  • Spanner Wrench (17 mm)
Air/Power Tools Accessories

PALM ORBITAL SANDER

SANDERS
Ergonomic lightweight design

Features

  • Compact and lightweight 1.6 lb. design
  • Ergonomically designed for operator convenience and comfort
  • Powerful high speed 10,000 RPM motor
  • Ultra small orbital action for high quality swirl-free finishes
  • Available with 5” or 6” pads
  • Variable speed control
  • One year limited warranty

Applications

  • Feather edging, metal preparation, and finishing work on body filler.
  • Curved surface sanding and corner rounding 35 in wood work


Random orbital action creates a professional finish

By offsetting the sanding pad shaft, fast aggressive sanding is achieved while dramatically reducing swirl patterns. Speed adjustments allow for the best speed for the best job.


APS-125

Schematic

APS-150


Air Pressure 85 PSI 85 PSI
Air Consumption (No load) 15.9 CFM 15.9 CFM
Free Speed 10,000 RPM 10,000 RPM
Orbit Diameter 3/16” 3/16”
Paper Size 5” Diameter 6” Diameter
Pad Type PSA PSA
Spindle Thread 5/16”-24 5/16”-24
Horsepower .37 HP .37 HP
Weight 1.52 lbs. 1.52 lbs.
Accessories Included
  • Threaded Adapter PT1/4” x NPT1/4”
  • Spanner
Air/Power Tools Accessories

For Self-Vacuum & Central Vacuum

The non-vacuum model is available from stock and can easily be modified to selfvacuum or central vacuum.

Self-Vacuum
Central Vacuum
