Air/Power Tools

SUPER HAND

Fast, efficient filing, sanding and deburring tools

MICRO AIR HAND

Lightweight, ultra-low vibration filer for polishing and lapping operations

SUPER HAND LIGHT

Small, lightweight, and low vibration for filing and deburring operations


SUPER HAND

FILERS
Fast, efficient filing, sanding and deburring tools

Features

  • Eliminates time consuming manual hand-filing operations
  • Ideal for industrial and production filing applications on steel, aluminum, brass, wood and other materials
  • Unique and compact design delivers reduced vibration performance while reducing operator fatigue
  • Interchangeable files
  • Rear exhaust system
  • One year limited warranty




SH-100A

Schematic

Weight reduced by half for comfortable operation over long periods of time

ASH-900

Schematic
Air Pressure 85 PSI 85 PSI
Air Consumption (No load) 8.5 CFM 7.1 CFM
Stroke Speed 3,700 SPM 6,300 SPM
Stroke Length 9 mm 9 mm
File Shank Size 6.3 mm 5.0 mm
Weight 2.4 lbs. 1.1 lbs.
Accessories Included
  • Threaded Adapter PT1/4” x NPT1/4”
  • 3 mm Allen Wrench
  • SF-10 Rat Tail File
  • SF-11 Triangular Taper File
  • SF-12 Half Round File
  • SF-13 Flat Bastard File
  • Threaded Adapter PT1/4” x NPT1/4”
  • 2.5 mm Allen Wrench
  • SF-10 Rat Tail File
  • SF-11 Triangular Taper File
  • SF-12 Half Round File
  • SF-13 Flat Bastard File



SF-10 Rat Tail File


SF-11 Triangular Taper File


SF-12 Half Round File


SF-13 Flat Bastard File

Optional Accessories




TA91752

Rubber Pad Ass'y for SH-100A




TA94625

Chuck Ass'y for SH-100A (use with TA91752)



TB04319

Sanding Pad Ass'y for ASH-800/ASH-900


For Super Hand SH-100A, ASH-800 & ASH-900
PN Description
TA9A222 SF-10 Rat Tail File (5 pcs./set)
TA9A223 SF-11 Triangular Taper File (5 pcs./set)
TA9A224 SF-12 Half Rounded File (5 pcs./set)
TA9A225 SF-13 Flat Bastard File (5 pcs./set)
TA91752 Rubber Pad Ass'y for SH-100A
TA94625 Chuck Assembly for SH-100A
TB04319 Sanding Pad Ass'y for ASH-800/ASH-900

MICRO AIR HAND

FILERS
Lightweight, ultra-low vibration filer for polishing and lapping operations



Diamond files (5pcs/set)

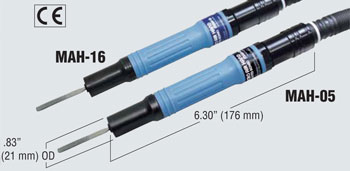

MAH-05

MAH-16

Schematic
Air Pressure 85 PSI 85 PSI
Air Consumption (No load) 2.5 CFM 2.5 CFM
Stroke Speed 22,000 SPM 11,000 SPM
Stroke Length 0.5mm 2.2mm
File Shank Size 3 mm 3 mm
Weight 0.8 lbs. 0.8 lbs.
Accessories Included
  • Threaded Adapter PT1/4”x NPT1/4”
  • 2 mm Allen Wrench
  • Flat End File
  • Round End File
Air/Power Tools Accessories


Vice Holder (PN TB07506)

This holder can be used for polishing and lapping applications by mounting ceramic stones, etc. (Max size: Thickness 3.2 mm × Width 20 mm)


SUPER HAND LIGHTD

FILERS
Small, lightweight, and low vibration for filing and deburring operations

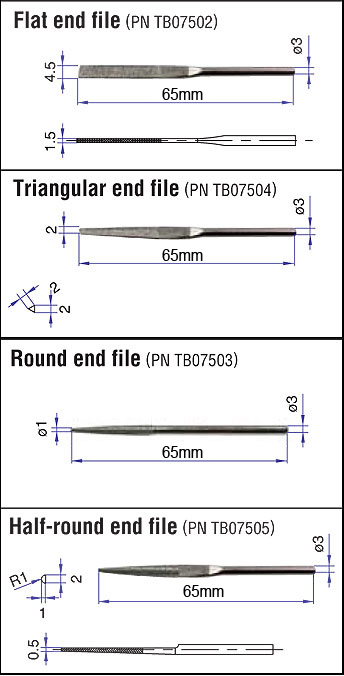

Diamond files (5pcs/set)

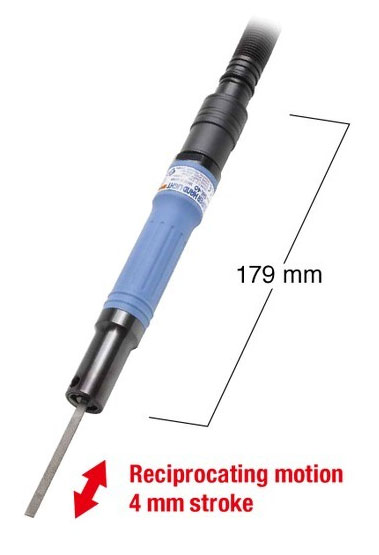

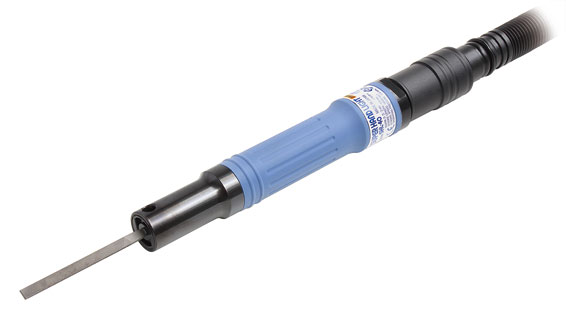

SHL-40

Schematic
Air Pressure 85 PSI
Air Consumption (No load) 2.5 CFM
Stroke Speed 9,000 SPM
Stroke Length 4mm
File Shank Size 3 mm
Inlet Size PT 1/4"
Weight 0.9 lbs.
Accessories Included
  • Threaded Adapter PT1/4" x NPT1/4"
  • 2 mm Allen Wrench
  • Flat File LF-13
Air/Power Tools Accessories


Vice Holder (PN TB07506)

This holder can be used for polishing and lapping applications by mounting ceramic stones, etc. (Max size: Thickness 3.2 mm × Width 20 mm)
