Air/Power Tools

AIR SONIC

Die Grinders
Pneumatic Die Grinders

Features

Ideal for most deburring, finishing and grinding applications
Precision machined with heavy-duty spindle and support bearings
Rear exhaust with patented noise reduction system
Suitable for industrial and production applications
Locking throttle lever helps prevent accidental start-up
Accepts most stone-type and rotary carbide burrs with 1/4” shanks
One year limited warranty

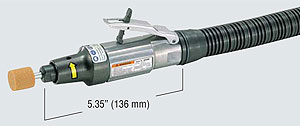

L-25B

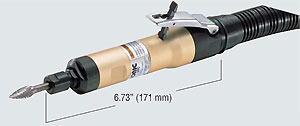

L-35C

	L-25B For all grinding, deburring and finishing jobs uitable for industrial and production applications Schematic	L-35C Ideal for rotary carbide burrs Schematic
Air Pressure	85 PSI	85 PSI
Air Consumption	14.1 CFM	12.4 CFM
Free Speed	27,000 RPM	37,500 RPM
Chuck Size	1/4”	1/4”
Hose Size	1/4”	1/4”
Weight (without hose)	1.3 lbs.	1.0 lbs.
Accessories Included	1/8” Chuck Sleeve Sample Grinding Stone Spanner Wrench (14 mm) Air Hose Chuck Pin	1/8” Chuck Sleeve Sample Grinding Stone Spanner Wrench (14 mm) Air Hose
Optional Accessory	3/16” Chuck Sleeve	3/16” Chuck Sleeve
		Air/Power Tools Accessories

* Stone type bits: Must be safety approved to operate at or above 37,500 RPM

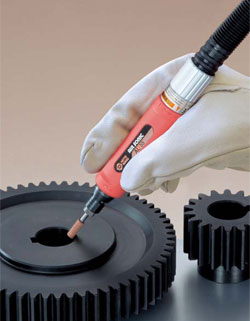

AL-55

Die Grinders
High Speed Rotation 56,500 RPM

Features

Smooth high speed rotation and low vibration enables precision grinding
Step-less speed change from 0 to 56,500 RPM meets a wide range of grinding applications
Compact and light weight for comfortable operation over long periods of time
Triangular grip fits operator’s hand. Special plastic grip prevents cold hands and absorbs vibration
Rear exhaust system

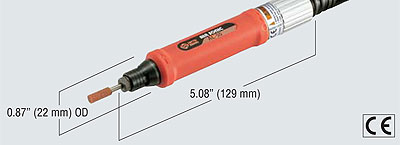

	AL-55 Schematic
Air Pressure	85 PSI
Air Consumption	6.0 CFM
Free Speed	56,500 RPM
Chuck Size	1/8”
Hose Size	1/4”
Weight (without hose)	0.55 lbs.
Accessories Included	Sample Grinding Stone Spanner Wrench (7 mm) Spanner Wrench (9 mm)
	Air/Power Tools Accessories

* Stone type bits: Must be safety approved to operate at or above 56,500 RPM
