Air/Power Tools

AIR CHIPPER

PNEUMATIC CHIPPING HAMMER
Removes weld splatter quickly and easily

Features

  • Ideal tool for quickly and efficiently removing weld splatter, rust and other debris from most surfaces
  • Compact, heavy-duty construction for tough industrial applications
  • Easy one-touch chisel installation and removal – NO tools required
  • Idle protection system, helps prevent accidental start-up “ACH-16” only
  • One year limited warranty


ACH-16

Chipping Hammer with idle protection system

Schematic

CH-24

Chipping Hammer for use removal of debris

Schematic
Air Pressure 85 PSI 85 PSI
Air Consumption 5.3 CFM 7.1 CFM
Strokes per Minute 6,000 SPM 4,000 SPM
Shank Size 27/64” (10.5 mm) Round 1/2” Square
Hose Size 3/8” ID 3/8” ID
Weight 2.2 lbs. 3.7 lbs.
Accessories Included
  • TQ03431 - Flat Chisel
  • Hose Nipple PT3/8” x 3/8”
  • Threaded Adapter PT3/8” x NPT3/8”
  • TP15166 - Curved Flat Chisel
  • Hose Nipple PT3/8” x 3/8”
  • Threaded Adapter PT3/8” x NPT3/8”
Air/Power Tools Accessories

Optional Chisels

ACH-16 Chisels
PN Description Qty
TQ03431 Flat Chisel 3/4” x 4-3/4” (20 mm x 120 mm) 1 pc.
TQ03453 Curved Flat Chisel 3/4” x 4-3/4” (20 mm x 120 mm) 1 pc.
TQ03549 Flat Chisel 7/16” x 4-3/4” (11 mm x 120 mm) 1 pc.
TQ03452 Flat Chisel 3/4” x 7-1/16” (20 mm x 180 mm) 1 pc.

CH-24 Chisels
TP15234 Straight Flat Chisel 1/2” x 6-1/2” (12.7 mm x 165 mm) 1 pc.
TP15233 Flat Chisel 1” x 6-1/8”(25 mm x 155 mm) 1 pc.
TP15166 Curved Flat Chisel 1” x 6-1/8” (25 mm x 155 mm) 1 pc.

SUPER KELEN

PNEUMATIC SCALER
Industrial and shipboard pneumatic scalers

Features

  • Quickly and efficiently removes rust, scale, paint, tar and concrete from most surfaces
  • Ideal for industrial, maritime and shipboard cleaning and descaling operations
  • Idle protection system, tool will not activate unless contacting work surface
  • S-1000 – over 4-1/2’ in length for extended reach applications and operator convenience
  • One-touch chisel installation and removal – NO tools required
  • One year limited warranty.

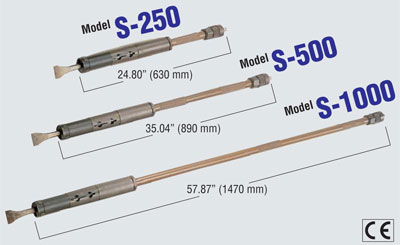

S-1000

S-250

S-250

24-13/16" length pneumatic scaler

Schematic

S-500

35" length pneumatic scaler

Schematic

S-1000

57-7/8" length pneumatic scaler

Schematic
Air Pressure 85 PSI 85 PSI 85 PSI
Air Consumption 9.5 CFM 9.5 CFM 9.5 CFM
Strokes per Minute 2,500 SPM 2,500 SPM 2,500 SPM
Shank Size 1/2” Square 1/2” Square 1/2” Square
Hose Size 3/8” ID 3/8” ID 3/8” ID
Weight 9.0 lbs. 10.4 lbs 13.4 lbs
Accessories Included
  • Scraper #2005
  • Threaded Adapter M16 x NPT3/8”
  • Scraper #2005
  • Threaded Adapter M16 x NPT3/8”
  • Scraper #2005
  • Threaded Adapter M16 x NPT3/8”
Air/Power Tools Accessories

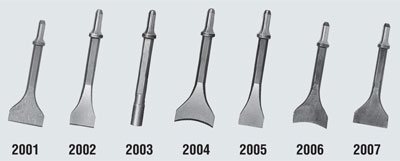

Optional Chisels


PN Description Qty
TP03645 2001 Scraper 2-3/8” (60 mm) 1 pc.
TP03646 2002 Scraper 1-1/2” (38 mm) 1 pc.
TP03647 2003 Blank Chisel 1 pc.
TP04010 2004 Concave Scraper 2-3/8” (60 mm) 1 pc.
TP04552 2005 Bend Scraper 1-1/2” (38 mm) 1 pc.
TP04553 2006 Concave Bend Scraper 2-3/8” (60 mm) 1 pc.
TP04554 2007 Bend Scraper 2-3/8” (60 mm) 1 pc.
